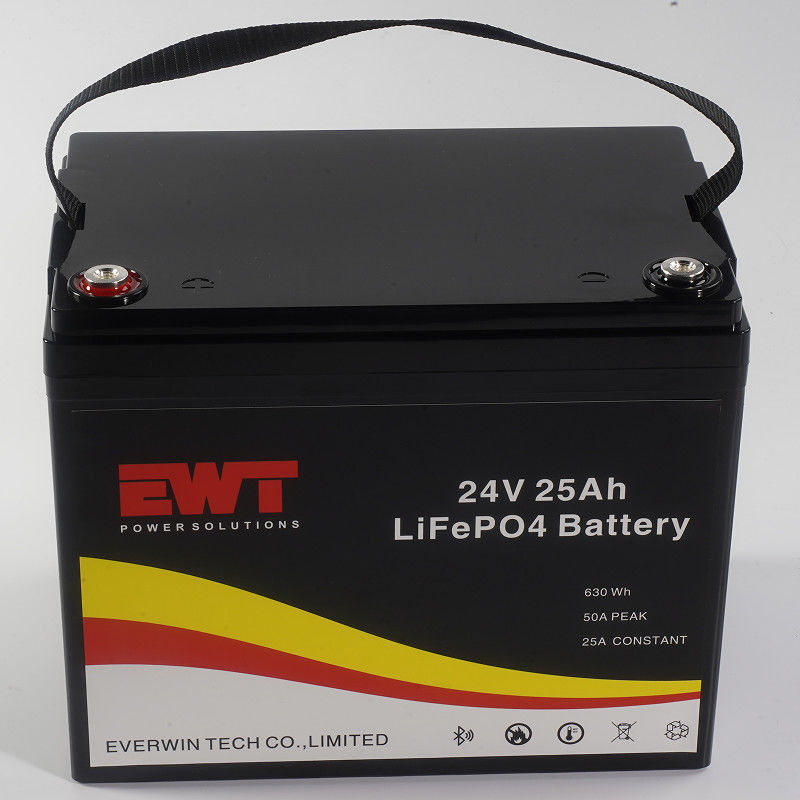

IFR32650 24V 25Ah LiFePO4 Battery Pack For Electric Vehicles And Safety Applications

Name: IFR32650 24V 25Ah LiFePO4 Battery Pack For Electric Vehicles And Safety Applications
Brand: Dongguan Everwin Tech Co., Limited
SKU: LiFePO4 24V 25Ah
Price: 269.00 USD
Availability: InStock

Brand Name:	EWT
Model Number:	LiFePO4 24V 25Ah
MOQ:	1pcs
Delivery Time:	10-30 days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UN38.3

Battery Model:

LiFePO4 24V 25Ah

Series:

Lisocl2 Battery

Cell:

IFR26500

Logo:

Can Be Customized

Out Power:

630Wh

Battery Size:

260mmX 168mm X218mm

Package:

Cartons

Shape:

Cylindrical

Capacity:

Varies Depending On Size And Model

Application:

Electricity Meters, GPS TRACKER

Safety Features:

Built-in PTC, Pressure Vent, And Safety Fuse

Rechargeable:

Yes

Packaging Details:

Box

Supply Ability:

1000000/pcs/month

Highlight:

25Ah LiFePO4 Battery Pack

Electric Vehicles LiFePO4 Battery Pack

24V LiFePO4 Battery Pack

Product Description

OEM UPS battery pack

Item	Specification
Nominal Voltage	24V
Nominal Capacity	25Ah
Charge Method	CC-CV
Charge Temperature Range	0~45℃
Discharge Temperature Range	-20~45℃

Customized LiFePO4 /LI-ion battery pack + charger + BMS. The BMS (Battery Management System that can monitor and equalize each single cell during charge & discharge ) .

Li-ion Battery: 3.7V/7.4V/11.1V/14.8V/22.2V/24V/36V/48V/60V/72V.....

LifePO4 Battery: 3.2V/6.4V/9.6V/12.8V/16V/25.6V/36V/48V/60V/72V...

Capacity: 1.5ah/5ah/10ah/12ah/15ah/20ah/30ah/40ah/50ah/100ah/150ah/200ah/300ah...

Notice for Designing Battery Pack

1 Pack toughness

Battery pack should have sufficient styength and the Li-Fe cell inside should be protected from mechanical shocks.

2 Cell fixing

The Li-Fe cell should be fixed to the battery pack by its large surface area.

No cell movement in the battery pack should be allowed.

3 Inside design

No sharp edge components should be insides the pack containing the Li-Fe cell.

4 Tab connection Spot welding is recommended for Li-Fe tab connection method.

Battery pack should be designed that shear force are not applied to the Li-Fe tabs.

If apply manual solder met hod to connect tab with PCM.below notice is very important to ensure battery

performance:

◆·The solder iron should be temperature controlled and ESD safe;

◆·Soldering temperature should not exceed 350℃;

◆·Soldering time should not be longer than 3s;

◆·Soldering times should not exceed 5 times,Keep battery tab cold down before next time soldrictly g;

◆·Directly heat cell body is strictly prohibited,Battery may damaged by heat above approx.100℃.

Main uses: Solar sytem, UPS, Backup power supply, Marine, RV...

1.electrical and hobby ---E-Bike
2.Emergency power supply, LED light and flashlight.
3.consumer applications
4.electrical tools
5.solar lawn, remote control
6.electric vacuum cleaner, electric sweeper
7.Backup power supply, Medical Device and so on. IFR32650 24V 25Ah LiFePO4 Battery Pack For Electric Vehicles And Safety Applications 0
